LEDVANCE ECO CLASS PANEL 600 40 W/4000 K

Preview: LEDVANCE ECO KLASSE PANEL 600 40 W/4000 K

LEDVANCE ECO KLASSE PANEL 600 40 W/4000 K

€27.40 *

incl. tax, plus shipping costs

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101415315

EAN: 4058075233300

MPN: 4058075233300

LEDVANCE ECO CLASS PANEL 600 40 W/4000 K Square recessed panel luminaires, 600 x 600 mm.... more

Back to the overview

All information about the product:

"LEDVANCE ECO CLASS PANEL 600 40 W/4000 K"

LEDVANCE ECO CLASS PANEL 600 40 W/4000 K

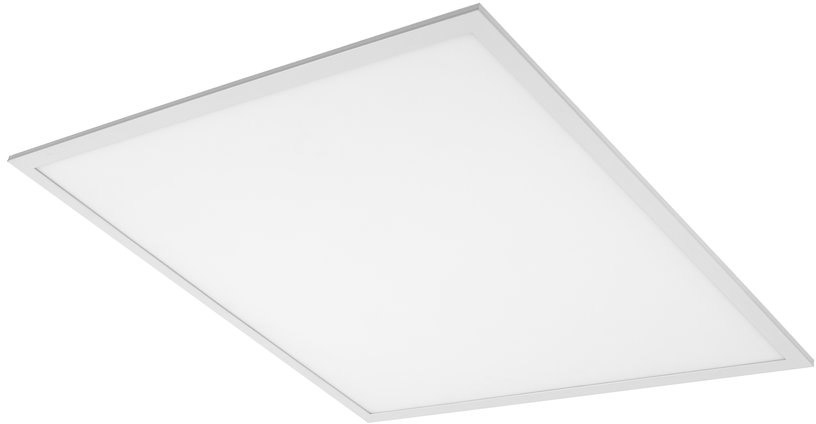

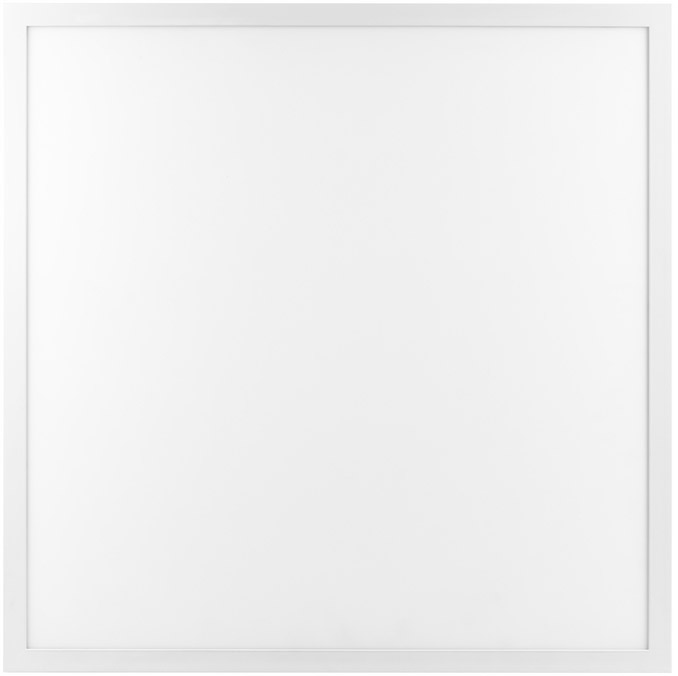

Square recessed panel luminaires, 600 x 600 mm. Product features: Lifetime (L70/B50): up to 50,000 h (at 25 °C). Extruded aluminum housing. Polystyrene diffuser. Product benefits: Low flicker light thanks to special electronic control gear. Energy savings thanks to system efficacy of up to 90 lm/W. Fast ceiling integration thanks to easy installation system. Areas of application: Direct replacement for luminaires with fluorescent lamps. Corridors. Offices. Conference rooms. Foyers. Reception areas. Elevators. Suitable for recessed ceiling systems with grid size of 600 x 600 mm. Equipment / Accessories: Accessories for several mounting options available.

Technical data:

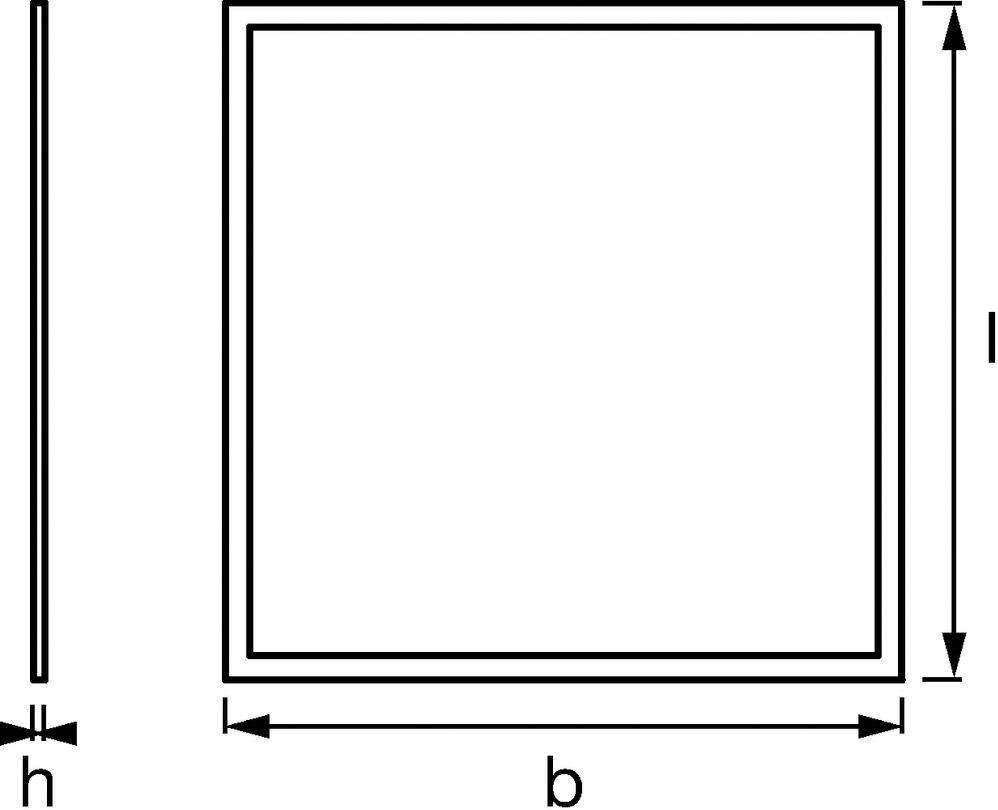

Length:	595 mm
Width:	595 mm
Height:	8,20 mm
Weight:	2200 g
Nominal voltage:	220-240 V
Nominal power:	40 W
Nominal current:	1200 mA
Energy consumption:	40 kWh/1000
Colour temperature:	4000 K
Light colour:	White
Luminous flux:	3400 lm
Luminous efficacy:	85 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	50000 h
Protection class:	IP20
Light source type:	LED not exchangeable
Material:	Aluminium
Colour:	White
Incl. illuminant:	Yes
Suitable for wall mounting:	no
Suitable for suspended mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for built-in mounting:	yes
Suitable for surface mounting:	yes
Suitable for light line configuration:	no
Suitable for workplace according to EN 12464-1:	no
Surface protection housing:	Powder coating
Type of grid:	Matt
Voltage type:	AC
Type of control gear:	Electronic ballast
With control gear:	yes
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Light distributor:	Diffuser lens/optic/panel
Light outlet:	Direct
Impact strength:	IK02
Protection class according to IEC 61140:	II
Rated ambient temperature according to IEC 62722-2-1:	+45°C
Suitable for emergency lighting:	no
Emergency power supply integrated:	no
With movement sensor:	no
With light sensor:	no
Covering of the luminaire with thermally insulating material possible:	no
With air slots:	no
Filament test according to IEC 60695-2-11:	650 °C - 30 s
Power factor:	0.90
Built-in length:	580 mm
Built-in width:	580 mm
Built-in height/depth:	10,00 mm
Type of wiring:	Ending
Number of poles:	2
Photobiological safety according to EN 62471:	RG0
Colour of light adjustable:	No
Luminous flux adjustable:	No
Operation by Bluetooth:	no
IFTTT support available:	no
