LEDVANCE ECO CLASS PANEL 600 UGR < 19 36 W/6500 K
This article has been discontinued!
You can find out about possible alternatives or successor models by calling our hotline:
Item number: 101415340
EAN: 4058075386723
MPN: 4058075386723
LEDVANCE ECO CLASS PANEL 600 UGR < 19 36 W/6500 K Square recessed panel luminaires with low... more
All information about the product:
"LEDVANCE ECO CLASS PANEL 600 UGR < 19 36 W/6500 K"

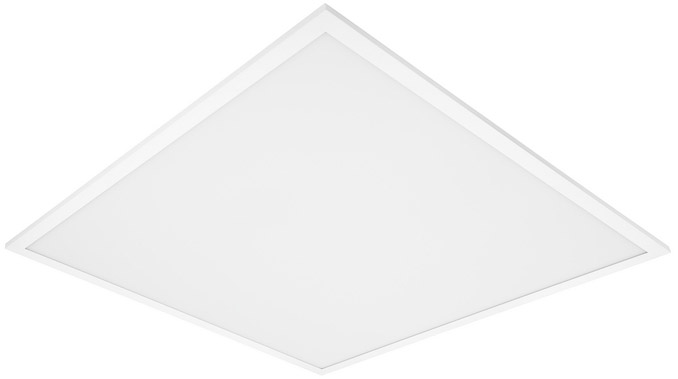

LEDVANCE ECO CLASS PANEL 600 UGR < 19 36 W/6500 K
Square recessed panel luminaires with low glare, 600x600 mm. Product features: Lifetime (L70/B50): up to 50,000 h (at 25 °C). Extruded aluminum housing. Polystyrene diffuser. Product benefits: Good glare reduction (UGR Technical data:
| Length: | 595 mm |
| Width: | 595 mm |
| Height: | 34 mm |
| Weight: | 1800 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 36 W |
| Nominal current: | 750 mA |
| Energy consumption: | 36 kWh/1000 |
| Colour temperature: | 6500 K |
| Light colour: | White |
| Luminous flux: | 3240 lm |
| Luminous efficacy: | 90 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | No |
| Lifetime: | 50000 h |
| Protection class: | IP40 |
| Light source type: | LED not exchangeable |
| Material: | Aluminium |
| Colour: | White |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | yes |
| Suitable for suspended mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | yes |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | yes |
| Surface protection housing: | Powder coating |
| Type of grid: | High-gloss |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Light distributor: | Diffuser lens/optic/panel |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Light outlet: | Direct |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 19 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 30 |
| Impact strength: | IK02 |
| Protection class according to IEC 61140: | II |
| Rated ambient temperature according to IEC 62722-2-1: | +45°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Filament test according to IEC 60695-2-11: | 650 °C - 30 s |
| Power factor: | 0.95 |
| Built-in length: | 580 mm |
| Built-in width: | 580 mm |
| Built-in height/depth: | 50,00 mm |
| Type of wiring: | Ending |
| Number of poles: | 2 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG0 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Operation by Bluetooth: | no |
| IFTTT support available: | no |
