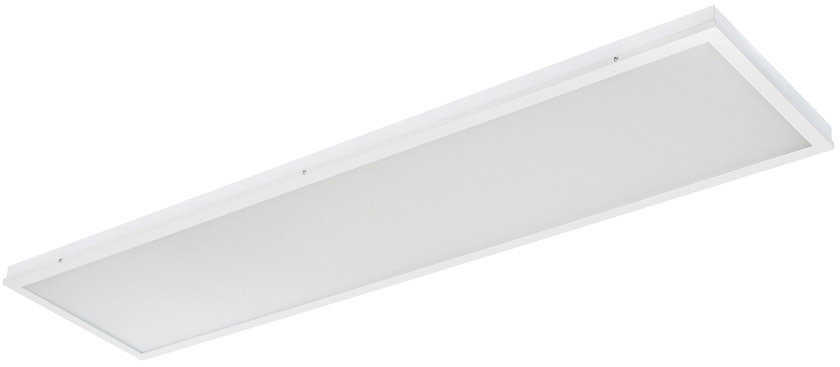

LEDVANCE PANEL 4IN1 300 x 1200 1200 32 W 6500 K

LEDVANCE PANEL 4IN1 300 x 1200 1200 32 W 6500 K

€59.63 *

incl. tax, plus shipping costs

Availability:

Delivery time: approx. 2-3 weeks

Delivery time: approx. 2-3 weeks

Item number: 101415470

EAN: 4058075699700

MPN: 4058075699700

LEDVANCE PANEL 4IN1 300 x 1200 1200 32 W 6500 K Rectangular 300x1200 surface panel luminaires.... more

Back to the overview

All information about the product:

"LEDVANCE PANEL 4IN1 300 x 1200 1200 32 W 6500 K"

LEDVANCE PANEL 4IN1 300 x 1200 1200 32 W 6500 K

Rectangular 300x1200 surface panel luminaires. Product features: Available 600 x 600 and 300 x 1200. Luminous flux 3600 lm. Luminous efficacy: up to 112 lm/W. Glow Wire Test according to IEC 60695-2-12: 650 °C. Lifetime (L70/B50): 50,000 h (at 25 °C). Product benefits: Homogenous light distribution. The product family offers full lighting solution for different applications. Energy savings of up to 50 % compared to T5 batten luminaires. Low flicker light thanks to special electronic control gear. 5 years guarantee. Areas of application: Direct replacement for luminaires with fluorescent lamps. Offices, schools. General indoor illumination. Corridors, entrance areas. Shop lighting.

Technical data:

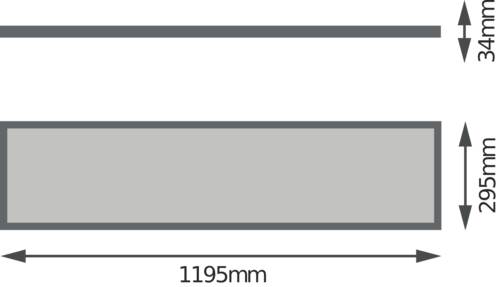

Length:	1195 mm
Width:	295 mm
Height:	34 mm
Weight:	2600 g
Nominal voltage:	220-240 V
Nominal power:	32 W
Nominal current:	143 mA
Energy consumption:	32 kWh/1000
Colour temperature:	6500 K
Light colour:	White
Luminous flux:	3600 lm
Luminous efficacy:	112 lm/W
Colour rendering:	80-89 CRI
Dimmable:	No
Lifetime:	50000 h
Protection class:	IP20
Light source type:	LED not exchangeable
Material:	Aluminium
Colour:	White
Incl. illuminant:	Yes
Suitable for wall mounting:	no
Suitable for suspended mounting:	yes
Suitable for ceiling mounting:	yes
Suitable for built-in mounting:	yes
Suitable for surface mounting:	yes
Suitable for light line configuration:	no
Suitable for workplace according to EN 12464-1:	no
Type of grid:	Matt
Voltage type:	AC
Type of control gear:	Electronic ballast
With control gear:	yes
Exchangeable control gear:	no
Dimming phase cut-off (trailing edge):	no
Dimming phase cut-on (leading edge):	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Colour consistency (McAdam ellipse):	SDCM5
Light outlet:	Direct
Max. number of luminaires per miniature circuit breaker B16 (MCB):	15
Max. number of luminaires per miniature circuit breaker C16 (MCB):	25
Impact strength:	IK02
Protection class according to IEC 61140:	I
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24:	no
Rated ambient temperature according to IEC 62722-2-1:	+50°C
Suitable for emergency lighting:	no
Emergency power supply integrated:	no
With movement sensor:	no
With light sensor:	no
Covering of the luminaire with thermally insulating material possible:	no
With air slots:	no
Filament test according to IEC 60695-2-11:	650 °C - 30 s
Flickering value Pst LM:	1
Power factor:	0.90
Stroboscope effect value SVM:	0.4
Constant light output (CLO):	no
Type of wiring:	Suitable for loop-through wiring
Number of poles:	3
Connection type:	Push-in clamp
Photobiological safety according to EN 62471:	RG1
Colour of light adjustable:	No
Luminous flux adjustable:	No
Beam angle adjustable:	No
Operation by Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	yes

Further links

Do you have any questions concerning this product?
Further products by Ledvance
Information about the manufacturer

Obligation to provide information on product safety (GPSR)

Manufacturer:
LEDVANCE GmbH
Parkring 1-5
DE-85748 Garching
[email protected]
Safety instructions and warnings

Safety instructions and warnings (GPSR)

Specific safety instructions that apply to the product can be found in the operating instructions for the product.
