SLV PAVANNO, 625 45 830/840/850 BK WH UGR19 DALI
€175.00 *
Availability:
Currently not available.
Expected to be available again in 3 weeks.
Expected to be available again in 3 weeks.
Currently not available
Item number: 110070880
EAN: 4024163319065
MPN: 1010579
PAVANNO: energy-efficient, durable, eligible for subsidies. With up to 190 lm/W, 100,000 h... more
All information about the product:
"SLV PAVANNO, 625 45 830/840/850 BK WH UGR19 DALI"
PAVANNO: energy-efficient, durable, eligible for subsidies. With up to 190 lm/W, 100,000 h service life, UGR<19, multi-lumen/colour and DALI control, the luminaire is perfect for working environments such as offices, training rooms or healthcare facilities.Technical data:
| Product name: | PAVANNO 625 45 830/840/850 BK WH |
| Colour: | black |
| Material: | Aluminium |
| electrical power: | 22 W |
| Luminous Flux: | 3403 / 6238 lm |
| Colour temperature: | 3000/4000/5000 Kelvin |
| Half beam angle: | 80 ° |
| CRI: | 80 |
| UGR ≤: | 19 |
| Dimmable: | Yes |
| Dimming technology: | DALI |
| CCT Switch: | Yes |
| IP Code: | IP20 |
| Assembly: | Recessed |
| Assembly details: | Ceiling |
| Shape: | square |

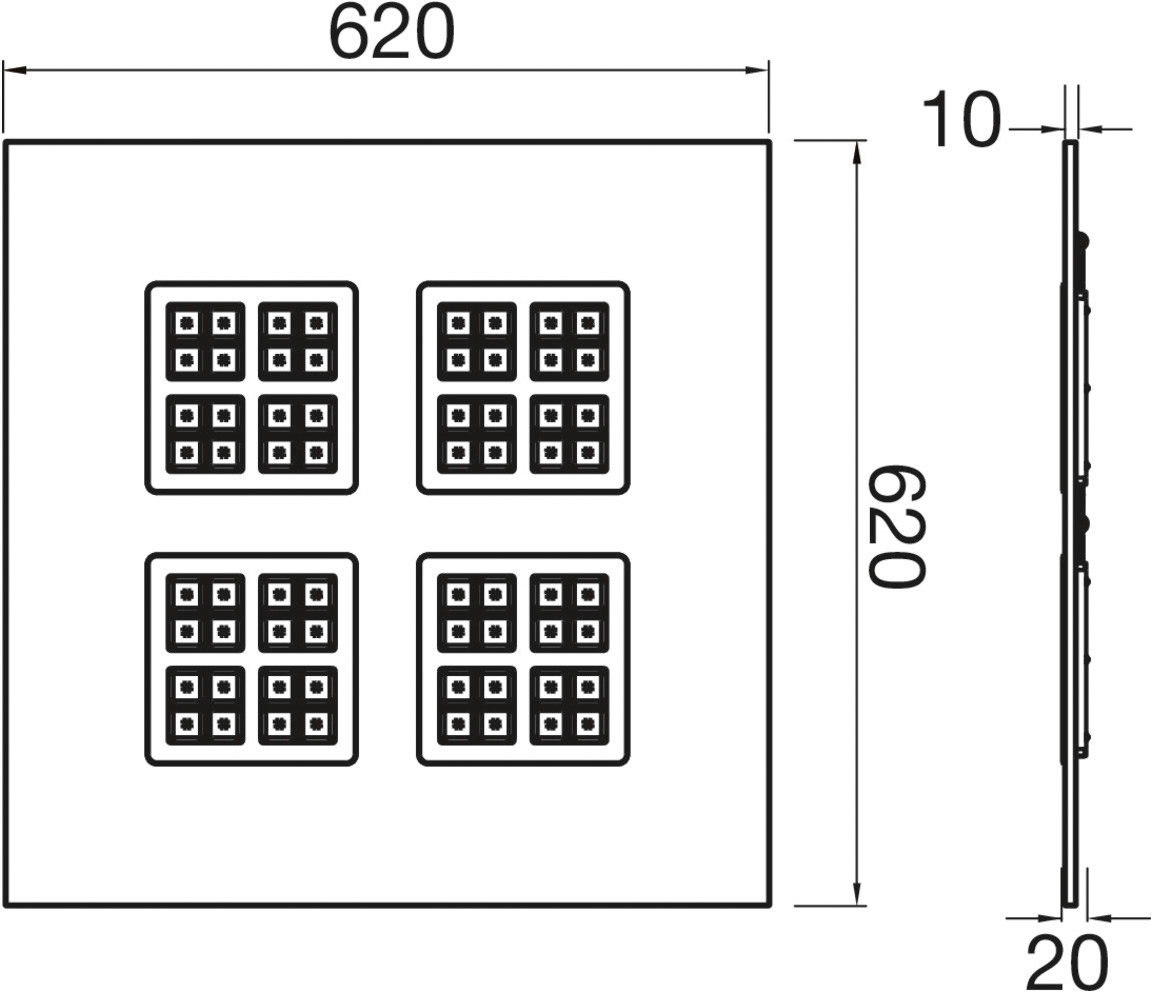

| Length: | 62 cm |
| Width: | 62 cm |
| Height: | 2 cm |
| Shock resistance category: | IK02 |
| Primary nominal voltage: | 220-240V ~0/50/60 Hz |
| Secondary power / secondary voltage: | 600-1050mA |
| TC point (°C): | 80 °C |
| Ambient temperature: | -20 - 40 °C |
| Net weight: | 3.2 kg |
| Weighted consumption: | 22 kWh/1.000h |
| Service life: | 100000 h |
| Risk group: | 1 |
Further links
- Further products by SLV
-
Information about the manufacturerObligation to provide information on product safety (GPSR)Manufacturer:SLV GmbH
Daimlerstraße 21-23
DE-52531 Übach-Palenberg
[email protected] -
Safety instructions and warningsSafety instructions and warnings (GPSR)Specific safety instructions that apply to the product can be found in the operating instructions for the product.
We will be happy to advise you!
You can reach us:
| Mon-Fri: | 08:00 am – 05:00 pm |
You can find answers to frequently asked questions here:
Service & help
Shipping free* from €69
Fast delivery
3-year guarantee
Attractive B2B conditions
Purchase on account: Buy safely!
Learn more about us!
Take a look behind the scenes at the LTT Group for an insight into our company.
Downloads
"SLV PAVANNO, 625 45 830/840/850 BK WH UGR19 DALI"
| Document type | File size | |
|
Operating instructions | 3.44 MB |
|
|
Data sheet | 0.28 MB |
|
|
Certificate | 0.10 MB |
|
|
Certificate | 0.22 MB |
|
|
EPREL-Product data sheet |
