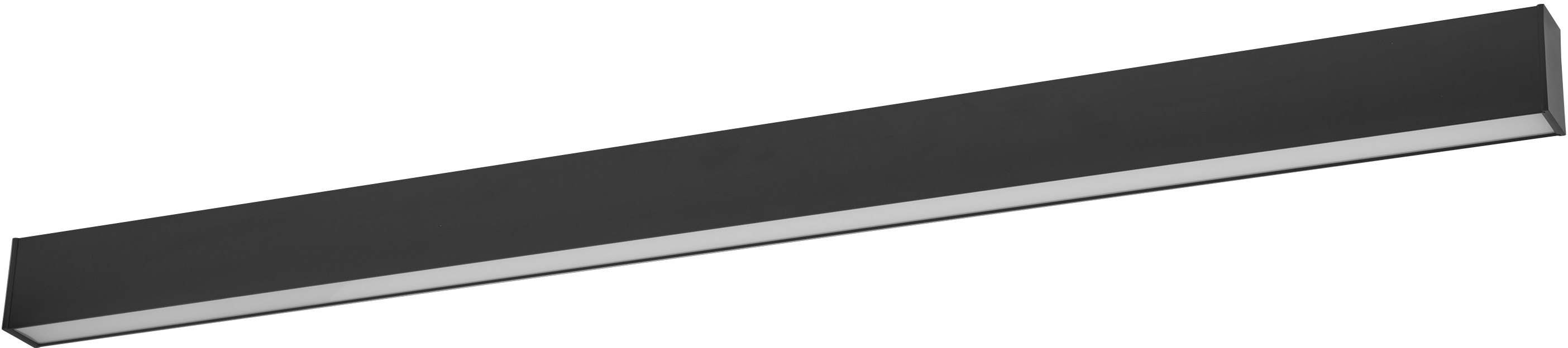

LEDVANCE Office Line Cuboid Ceiling 30W 840 DIM Black
NEW
€85.44 *
Availability:
Delivery time: approx. 2-3 weeks
Delivery time: approx. 2-3 weeks
Item number: 101420460
EAN: 4058075842304
MPN: 4058075842304
NEW
LEDVANCE Office Line Cuboid Ceiling 30W 840 DIM Black product advantages Linear luminaire in... more
All information about the product:
"LEDVANCE Office Line Cuboid Ceiling 30W 840 DIM Black"
LEDVANCE Office Line Cuboid Ceiling 30W 840 DIM Black
product advantages
Technical data:- Linear luminaire in timeless design
- 3-step dimming via switch on the top of the luminaire
- High-quality metal housing
- office lighting
- interior applications
- home offices
- General interior lighting
- Kitchens, work areas
- Service life up to 100,000 hours
- Color temperature: 4,000 K
- Material: aluminum (housing), polycarbonate (diffuser)
- Complete mounting and connection accessories included
- All electrical connections must only be carried out by qualified personnel.
- Caution, risk of electric shock.
- The luminaires are not designed to be covered with heat-insulating material.
- Product of protection class I. All electrically conductive, metallic housing parts that may become live during operation or maintenance in the event of a fault must be connected to the protective conductor throughout.
- Check the wall/ceiling to ensure it is suitable. If you are unsure, seek professional advice.
| Length: | 1126 mm |
| Width: | 41 mm |
| Height: | 70 mm |
| Weight: | 1270 g |
| Nominal voltage: | 220-240 V |
| Nominal power: | 30 W |
| Nominal current: | 136 mA |
| Energy consumption: | 30 kWh/1000 |
| Colour temperature: | 4000 K |
| Light colour: | White |
| Beam angle: | 105° |
| Luminous flux: | 3100 lm |
| Light intensity: | 1250 cd |
| Luminous efficacy: | 100 lm/W |
| Colour rendering: | 80-89 CRI |
| Dimmable: | Yes |
| Lifetime: | 100000 h |
| Switching cycles: | 50000 |
| Protection class: | IP20 |
| Material: | Aluminium |
| Colour: | Black |
| Incl. illuminant: | Yes |
| Suitable for wall mounting: | yes |
| Suitable for suspended mounting: | no |
| Suitable for ceiling mounting: | yes |
| Suitable for built-in mounting: | no |
| Suitable for surface mounting: | yes |
| Suitable for light line configuration: | no |
| Suitable for workplace according to EN 12464-1: | no |
| Material cover: | Plastic, opal |
| Voltage type: | AC |
| Type of control gear: | Electronic ballast |
| With control gear: | yes |
| Exchangeable control gear: | no |
| Dimming phase cut-off (trailing edge): | no |
| Dimming phase cut-on (leading edge): | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Colour consistency (McAdam ellipse): | SDCM6 |
| Light outlet: | Direct |
| Max. number of luminaires per miniature circuit breaker B16 (MCB): | 24 |
| Max. number of luminaires per miniature circuit breaker C16 (MCB): | 40 |
| Impact strength: | IK03 |
| Protection class according to IEC 61140: | I |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24: | no |
| Rated ambient temperature according to IEC 62722-2-1: | +40°C |
| Suitable for emergency lighting: | no |
| Emergency power supply integrated: | no |
| With movement sensor: | no |
| With light sensor: | no |
| Covering of the luminaire with thermally insulating material possible: | no |
| With air slots: | no |
| Power factor: | 0.90 |
| Constant light output (CLO): | no |
| Type of wiring: | Ending |
| Number of poles: | 3 |
| Connection type: | Push-in clamp |
| Photobiological safety according to EN 62471: | RG1 |
| Colour of light adjustable: | No |
| Luminous flux adjustable: | No |
| Beam angle adjustable: | No |
| Operation by Bluetooth: | no |
| Compatible with Casambi: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | yes |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C): | no |
