SLV PANEL 60, Ceiling-mounted light, round, DALI, 3000/4000K, 29W, 90°, white
€261.63 *
Availability:
Currently not available.
Expected to be available again in 6 weeks.
Expected to be available again in 6 weeks.
Currently not available
Item number: 110070630
EAN: 4024163316002
MPN: 1010424
The new PANEL 60 - the efficient lighting solution for office and general areas. With a... more
All information about the product:
"SLV PANEL 60, Ceiling-mounted light, round, DALI, 3000/4000K, 29W, 90°, white"
The new PANEL 60 - the efficient lighting solution for office and general areas. With a switchable colour temperature (3,000/4,000 K), CRI>90, improved energy efficiency and UGR<19, it meets all the requirements of modern workplaces. Ideal as a replacement for existing systems: simply replace and benefit immediately!Technical data:
| Product name: | PANEL 60 |
| Colour: | white |
| Material: | Aluminium |
| electrical power: | 29 W |
| Luminous Flux: | 3050 / 3300 lm |
| Colour temperature: | 3000/4000 Kelvin |
| Half beam angle: | 90 ° |
| CRI: | 90 |
| UGR ≤: | 19 |
| Different light outlets: | 1 |
| Dimmable: | Yes |
| Dimming technology: | DALI 2 |

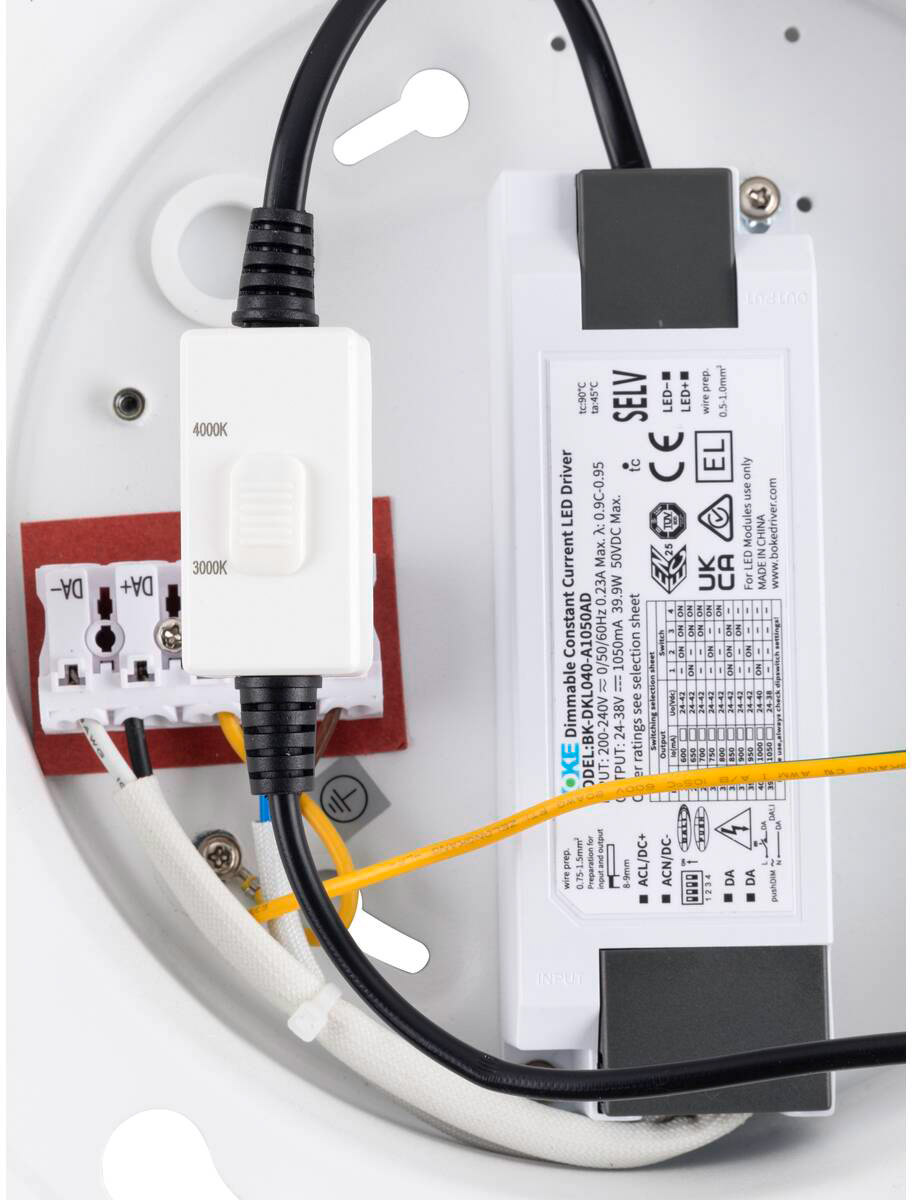

| CCT Switch: | Yes |
| IP Code: | IP20 |
| Assembly: | Surface |
| Assembly details: | Ceiling |
| Shape: | round |

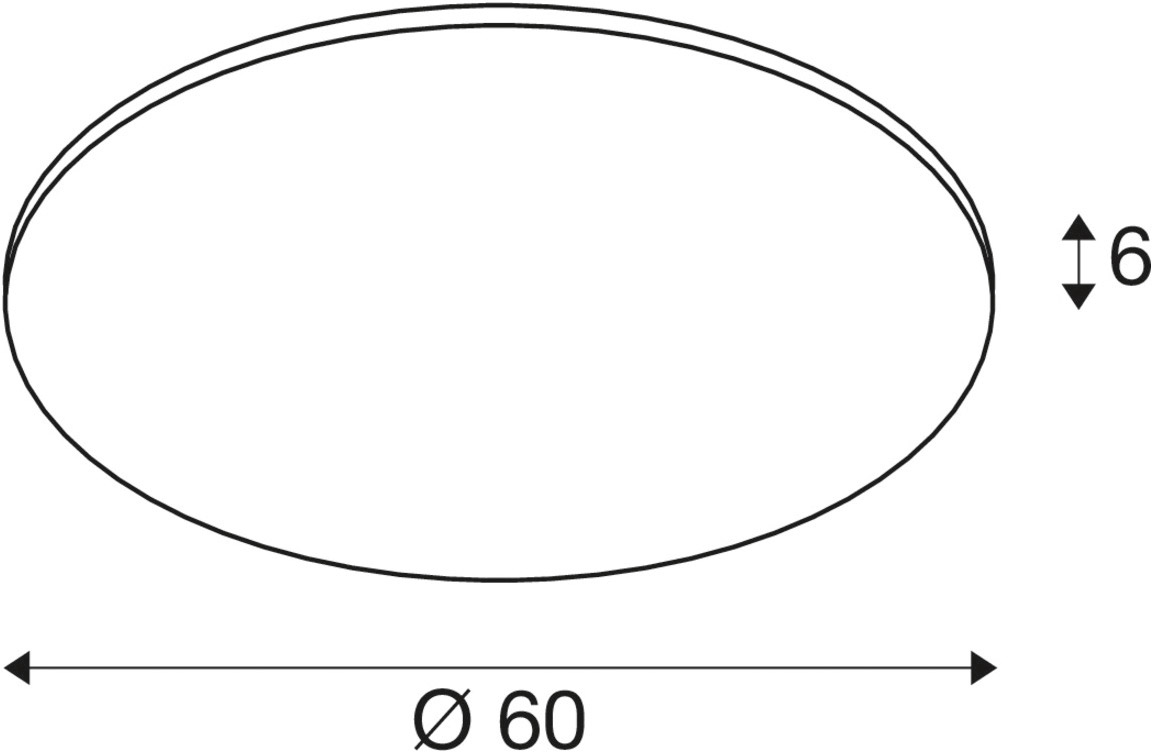

| Height: | 6 cm |
| Diameter: | 60 cm |
| Shape of cut-out: | round |
| Installation depth: | 7 cm |
| Shock resistance category: | IK02 |
| Shock resistance: | 0.2 joule |
| Output voltage: | 0 0 |
| Primary nominal voltage: | 220-240V ~50/60 Hz |
| Secondary power / secondary voltage: | 750 mA |
| Ambient temperature: | 45 °C |
| Net weight: | 4.8 kg |
| Weighted consumption: | 29 kWh/1.000h |
| LXXBXX Data: | 80 | 10 |
| Service life: | 50000 h |
| Number of lights on LS B16A: | 29 St. |
| Number of lights on LS C16A: | 48 St. |
| Inrush current level: | 14.75 A |
| Inrush current duration: | 256 μs |
| Risk group: | 1 |
