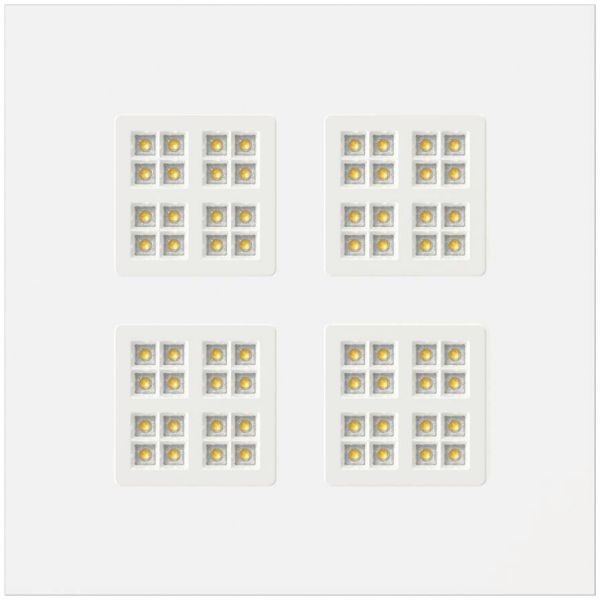

SLV PAVANNO, 625 45 830/840/850 WB WH UGR19

PAVANNO: energy-efficient, durable, eligible for subsidies. With up to 190 lm/W, 100,000 h service life, UGR<19, multi-lumen/colour and DALI control, the luminaire is perfect for working environments such as offices, training rooms or healthcare facilities.Technical data:

Product name:	PAVANNO 625 45 830/840/850 WB WH
Colour:	white
Material:	Aluminium
electrical power:	17 W
Luminous Flux:	2957 / 6882 lm
Colour temperature:	3000/4000/5000 Kelvin
Half beam angle:	80 °
CRI:	80
UGR ≤:	19
CCT Switch:	Yes
IP Code:	IP20
Assembly:	Recessed
Assembly details:	Ceiling
Shape:	square

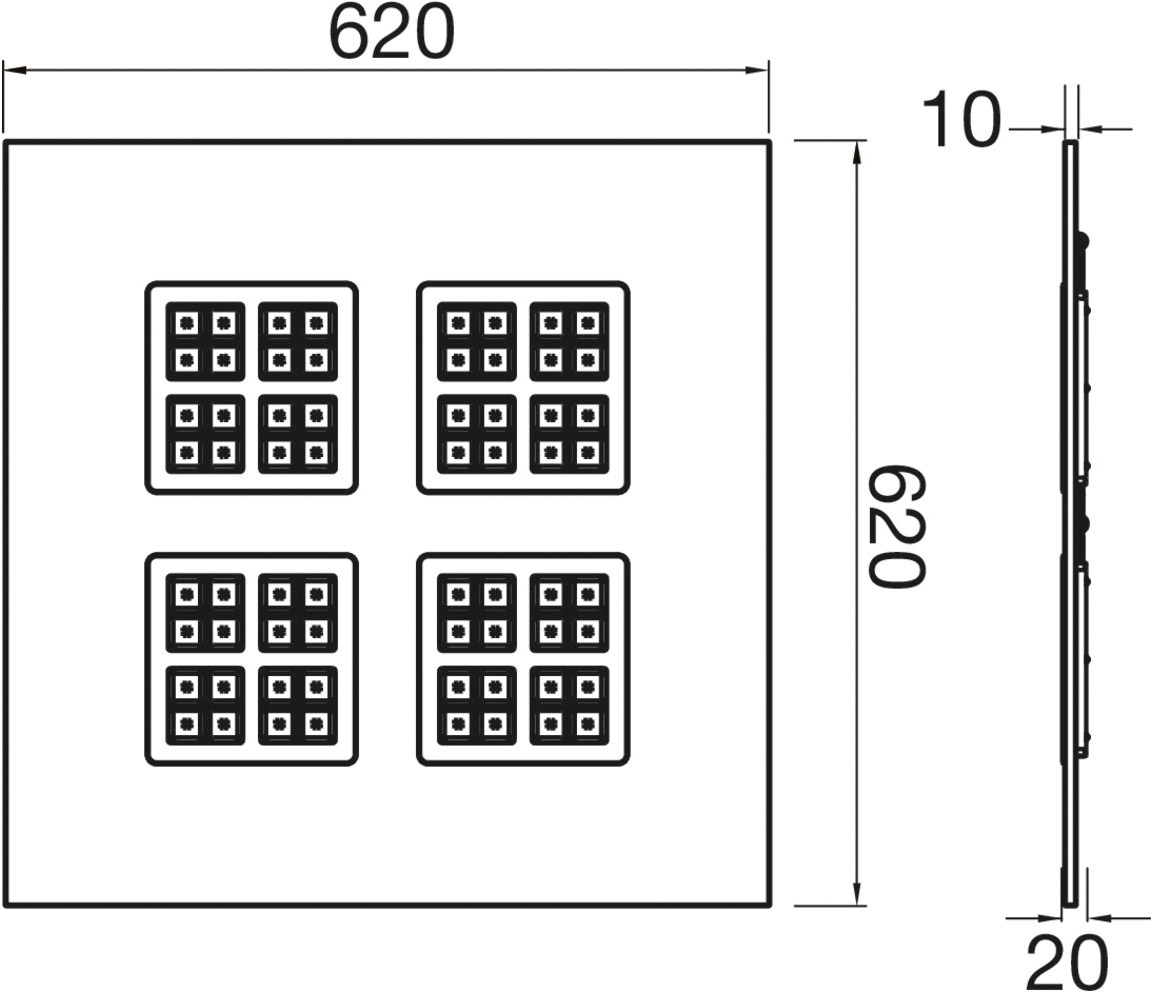

Length:	62 cm
Width:	62 cm
Height:	2 cm
Shock resistance category:	IK02
Primary nominal voltage:	220-240V ~0/50/60 Hz
Secondary power / secondary voltage:	500-1100mA
TC point (°C):	80 °C
Ambient temperature:	-20 - 40 °C
Net weight:	3.2 kg
Weighted consumption:	17 kWh/1.000h
Service life:	100000 h
Number of lights on LS B16A:	27 St.
Number of lights on LS C16A:	45 St.
Inrush current level:	19.1 A
Inrush current duration:	220 μs
Risk group:	1
